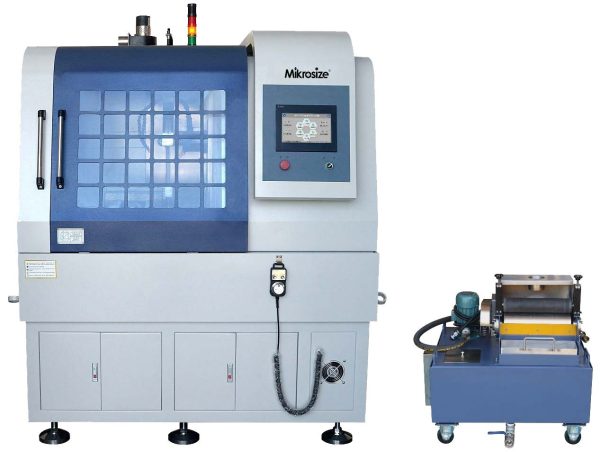

MCut-100A/120A/200A/300A Auto Metallographic Abrasive Cutter

Product Feature：

• PLC controlled automatic metallographic cutting machine. Mitsubishi brand control system and servo motor.

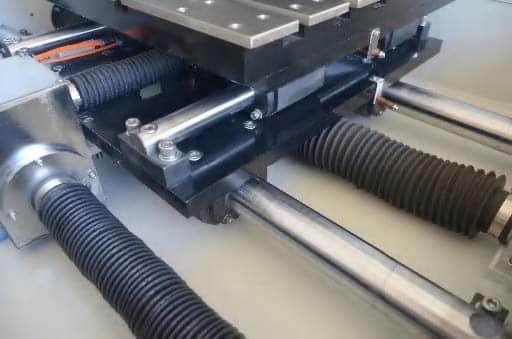

• X, Y, Z axis controlled automatically and precisely.
• Intelligent cutting speed according to material’s hardness, to achieve the fastest cutting efficiency.
• Frequency conversion controls cutting speed.
• Electro- handwheel, for automatic control.
• Touch screen displays various cutting data.
• Infrared precise positioning.
• 4 cutting modes: swing cutting, continuous cutting, reciprocating cutting, variable speed cutting.
• Cutting speed for solid steel cylinder can reach 10mm/min.
• Electro-mechanical separation design to facilitate cutting chamber cleaning and spindle motor security.
• Large observation window for cutting chamber installed, LED lights equipped inside.
• Ventilation fan ensures the efficient flow discharge of various steam and smoke caused by cutting.
• Ergonomics design,. low noise, easy to operate, beautiful appearance, safety use.

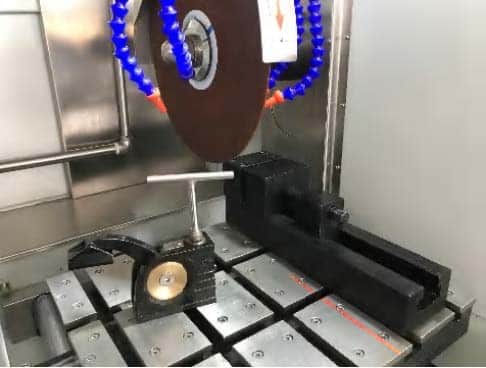

• Vertical machine, mainly composed of upper safety cover, middle frame, right sliding door, side door, underside frame including electrical box, tool box inside, clamping fixture, rinsing tap, independent cooling water tank.
• Stepless speed, ABB 7.5KW frequency conversion motor directly connected to the cut-off wheel.
• Sliding door and hinged door is more convenient for you to place the large sample in the right position from three directions (up, front and left).

Product Application：

• Designed for large sample cutting, high efficiency and low noise. making it easier to maintain machine parts and handle large samples. Easy to operate, beautiful appearance and safe use. It is one of the necessary equipment for laboratory sample preparation.
