Low speed protects against heat deformation. Accuracy of +0.01 mm.
100-175mm (4-7’’) CBN and diamond cut-off wheels.

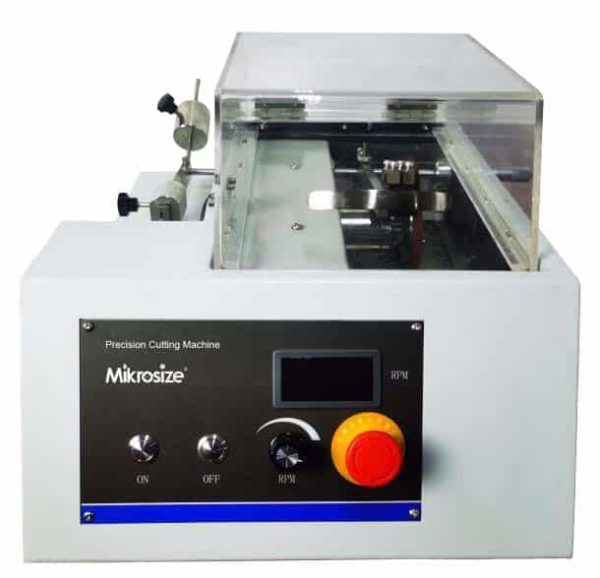

A small, low-speed, automatic precision cutting machine for sectioning small and delicate material graphic workpieces that can’t tolerate the heat generated by high-speed cutting.
uCut-40 is designed with speed and efficiency in mind. The simple design means it only takes a few minutes to setup a cut, and the machine can be set to stop automatically once the cut is done, unguarded processing can be realized and giving you more time to work on other tasks.

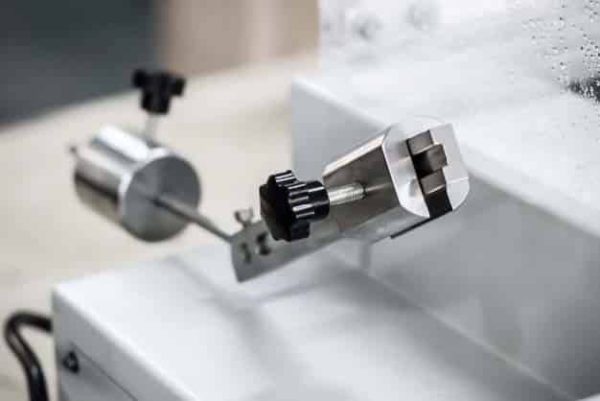

The gravity feed design allows for sectioning of various material types, with high accuracy and reproducibility, easy to operate and the feeding speed of cutting sample is fine-tuned to minimize sample damage.
Simple and intuitive operation menu.
Closed transparent protective cover and safety switch provide protection for operators, easy to observe.
Closed loop control cutting to prevent overloading to burn motor, circuit, etc.

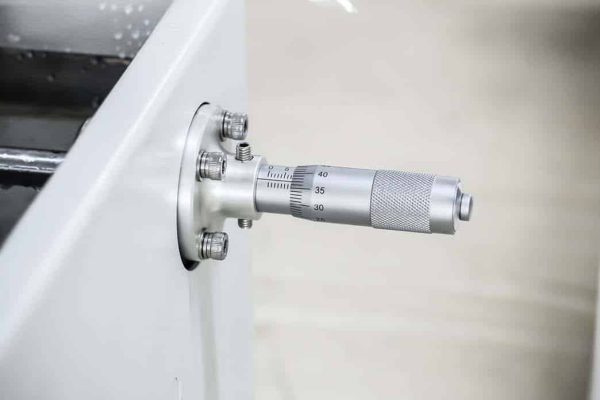

Ultra-thin cut-off wheel, such as 0.4mm thick diamond cut-off wheel, using the micrometer screw, with accuracy of 0.01 mm, to achieve precision cut- ting ., make it ideal for small pieces that require high precision.

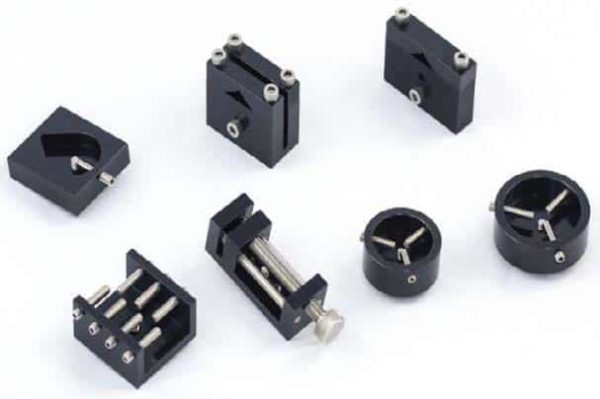

7 pieces of different sample fixture to meet the cutting requirements of different samples.
Large size circuit board table cutting device (optional), convenient for wafer material, circuit board, glass and other large size sample cutting.
Sintered diamond cut-off wheel , easily precised cutting for glass, circuit, board rock, and other solid materials.
Product Application：
uCut-40 Cutting Machine can be used to cut material, electronic element, electronic element, crystals, hard alloy, rock sample, core sample, concrete, organic materials, biological materials (teeth, bones), etc. Precision cutting without deformation.
It is an ideal precision cutting machine for industrial and mining enterprises, scientific research institutes to prepare high quality samples.
