Grade “00” Granite Foundation

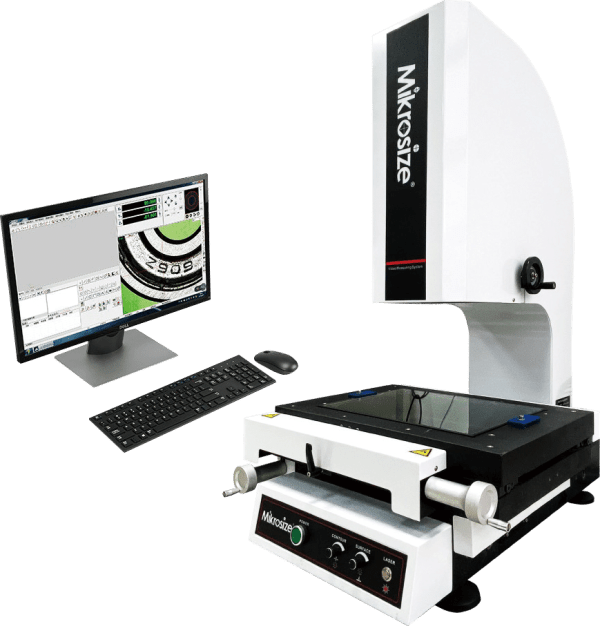

The VMA-3020 utilizes “00” grade high-precision granite for its workbenches and columns. This material provides exceptional strength, natural corrosion resistance, and zero stress deformation over time. This heavy, rigid foundation guarantees the ultimate thermal and mechanical stability for your measurements.
Precision Backlash-Free Drive System
-
X and Y Axes: Equipped with premium toothless guide rods and high-precision bearings imported directly from Germany.
-
Z Axis: Driven by a specialized T-shaped screw featuring a rapid-movement locking mechanism. This custom design ensures perfectly smooth, high-speed travel with absolutely zero gaps, jumping, or rebound errors.
Multi-Coated Distortion-Free Optics
The integrated video measuring system incorporates premium, multi-coated optical components. These advanced coatings minimize optical attenuation, prevent visual distortion, and deliver crystal-clear image quality to the measurement software.
Patented Laser-Targeted Lighting
Our patented surface lighting system pairs directly with an integrated laser indicator. This alignment tool allows operators to locate target features instantly, making manual part positioning faster and more intuitive.
Powerful VMS Software Suite

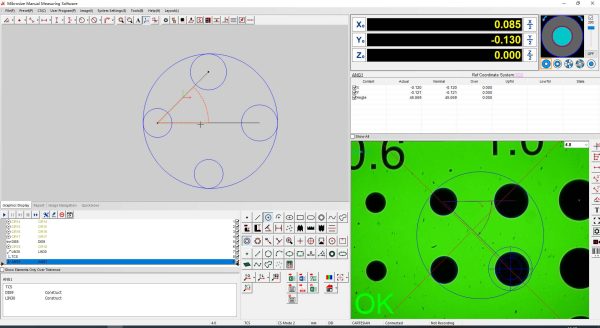

Our independently developed VMS measurement software features intelligent automatic edge-finding algorithms and robust geometric calculations. It generates a diverse array of customizable output reports to meet specific customer criteria. We provide all software updates and system maintenance completely free of charge.
Expandable Modular Architecture

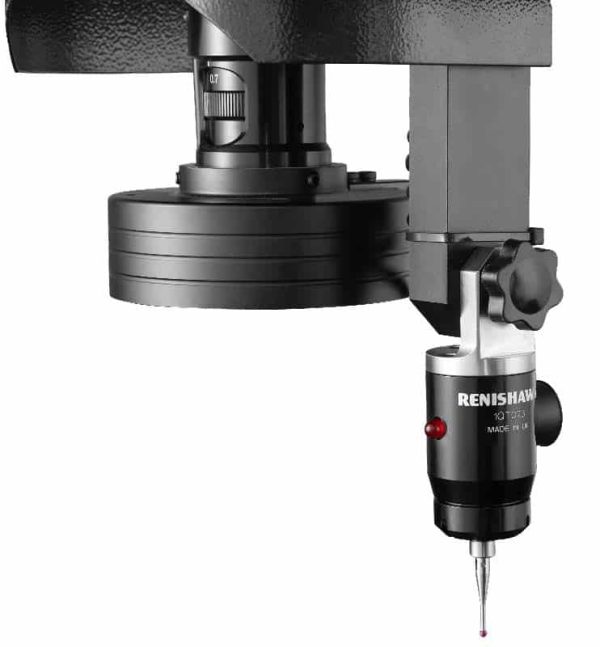

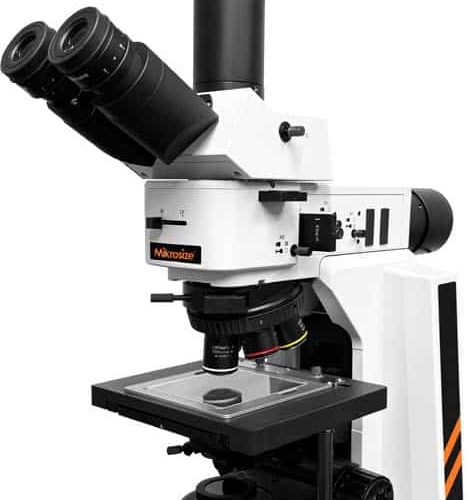

The system effortlessly scales to handle advanced testing criteria. You can expand the machine’s capabilities by adding an optional contact touch probe, a coaxial lens attachment, or a specialized metallographic microscope module.
Industrial Product Applications
Magnetic Material Batch Testing
Measuring bulk quantities of small, complex magnetic parts is traditionally difficult. Our VMS software solves this with an automatic image registration function. It eliminates the need for physical fixtures or precise workpiece positioning. With a single click, the system measures multiple parts simultaneously and exports the results instantly.
Cylinder & Precision Machining Contour Scans
The VMS software features automated boundary extraction and edge-grabbing routines. Paired with adjustable wheel lights and horizontal scanning lights, the system eliminates distracting shadows. This sharpens the contours of cylindrical products and guarantees highly accurate dimensional measurements.
LCD Display Component Assembly
Electronics manufacturers widely utilize this system to assemble, inspect, and test materials for LCD televisions, computer monitors, and smartphones. The stable, high-precision measurement technology integrates smoothly into your Statistical Process Control (SPC) workflows to boost factory yields.
High-Speed Glass & Display Screen Cutting
Operators can program customized, automated measurement tasks based on specific workpiece dimensions to execute rapid batch testing. To guarantee relentless reliability on the factory floor, this instrument undergoes 168 hours of continuous fatigue testing prior to shipping.
Large-Scale Backlight Modules
The VMA-3020 adapts easily to large surface areas through an automated bridge structure. This specialized architecture allows high geometric precision to coexist seamlessly with a large physical measuring range.
PCB Design & Multi-Zone Inspection
For printed circuit boards, the machine deploys a five-ring, eight-zone surface light source featuring 256 levels of adjustable brightness. Supported by coaxial lighting, this setup breaks through the measurement bottlenecks of traditional systems to verify fine trace designs and multi-layer layouts.
Flexible Insulation Materials
Soft, ultra-thin, or easily warped insulation materials present major clamping challenges. The VMA-3020 solves this by integrating an innovative, large-field-of-view flash measurement concept. This allows one-click rapid measurements without requiring physical coordinate system alignment.
Lead Frames & Terminal Connectors
-
Lead Frames: Users can import CAD drawings directly into the VMS software. The system aligns the digital drawing to the physical sample automatically, simplifying complex workloads and slashing programming time.
-
Terminal Connectors: For grid and array layouts, the software features advanced replication functions (including translation, rotation, and coordinate system cloning) to dramatically compress measurement cycles.
Precision High-Speed Hardware
The machine meets the tight tolerances and rapid production cycles required by the precision hardware industry, helping manufacturers stay competitive through fast product update cycles.
