Product Features：

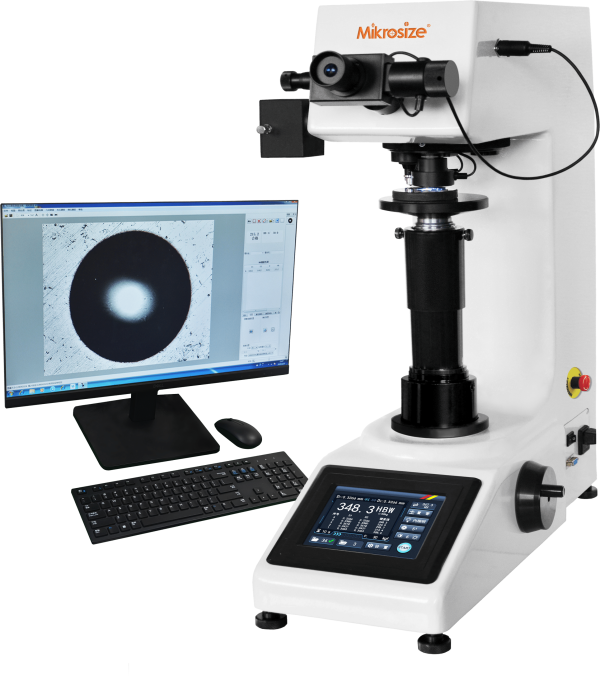

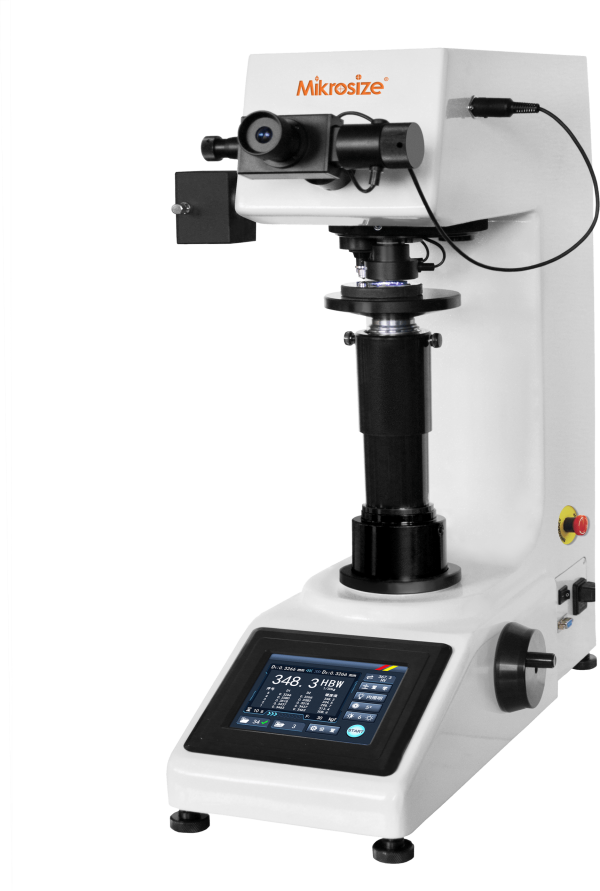

- The MBrin-62.5Digital Touch Screen Low-Load Brinell Hardness Tester is an opto-mechatronic high-tech product equipped with a brand-new high-resolution color touch screen for intuitive display and easy operation.
- The screen features adjustable backlight and energy-saving mode.
- The touch screen directly displays information such as measurement scale, indentation diameter, hardness value and conversion scale.
- Hardness test results are stored in real time, supporting data classification, selective deletion and printout, with automatic calculation of maximum, minimum and average values.
- Brinell hardness measurement with low test forces.
- Digital display micrometer eyepiece for convenient measurement.
- Automatic turret with dual objectives, allowing quick switching to measure indentations of different sizes.
- The instrument offers 8 levels of test force and 9 Brinell test scales for optional selection.
- It is equipped with 5× and 10× objectives, both available for measurement; automatic switching between objectives and indenters is supported.
- The tester allows presetting of test force dwell time and adjustment of measuring light source brightness. Adopting a dual-light-source design with halogen lamp and LED, it adapts to various specimen surfaces and ensures a clear field of view.
- Itis equipped with an RS232 interface for data output to a computer. A CCD automatic image measurement system is optional.
Product Application：
- It is suitable for hardness testing of materials such as cast iron, steel, non-ferrous metals and soft alloys, as well as certain non-metallic materials including hard plastics and bakelite.
