Product Features：
- One-touch operation; the whole mounting force including heating, heat preservation, automatic pressure compensation, cooling and unloading is completed automatically.
- High specimen preparation efficiency. Adopting advanced heating technology and optimized cooling system; it takes approximately 7 minutes to mount specimens of Φ30 mm
(1.18 inches), and about 25 minutes for Model 2-30. - Dual-Cylinder design with independent operation for each Cylinder.
- Pneumatic pressurization for Model 2-30 & 2-50, hydraulic pressurization for Model 2-120 &2-400; maximum pressure reaches 400 kgf (Model 2-400).
- Standard specimen size: Φ30 mm (1.18″); optional sizes: Φ40 mm (1.57 inches) and Φ50mm (1.97 inches); custom sizes are available.
- Max. heating temperature: 180C for pneumatic models, 200℃ for hydraulic models.
- Equipped with pulse cooling technology for adjustable cooling intensity and water conservation.
- Three optional cooling modes: temperature control, time control and manual control.
- Multiple safety protections; power cuts off automatically in case of overheating.
- The housing is made of high-strength high-temperature resistant composite material, featuring rust resistance and corrosion resistance.
- 7-inch color touch screen for user-friendly operation.
- Real-time display of temperature curve.
- Supports up to 20 sets of mounting recipe settings.

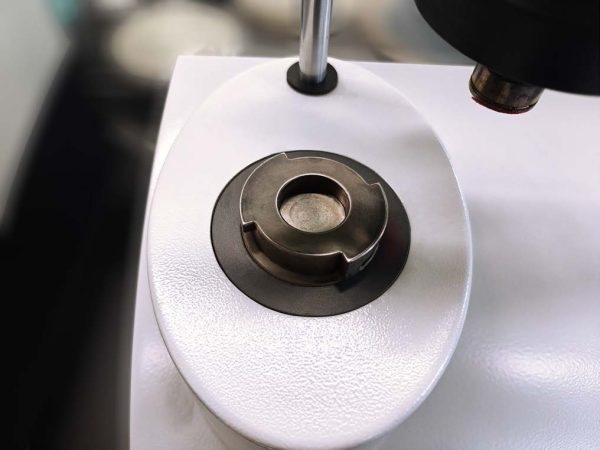

- No need to remove the top cover for quick opening of the mold cavity.
- Comes with hot mounting release agent as standard for easy demoulding after mounting.
- External circulating water tank is available as an accessory.
- Compliant with standards: GB/T 13298, ASTM E3-11, ISO 20580.
Product Applications：
- Uniform mounting of miniature samples to ensure flat surface and intact edges.
- Analysis of hardness gradient, carbide distribution, heat treatment quality and failure analysis.
- Inspection of quenched layer, tempered microstructure, fatigue cracks, coating layer and metallographic consistency of materials.
- Rating of metallographic structure, grain size measurement, inclusion analysis, depth detection of carburized layer/nitrided layer.
