Product Description (Long Description)

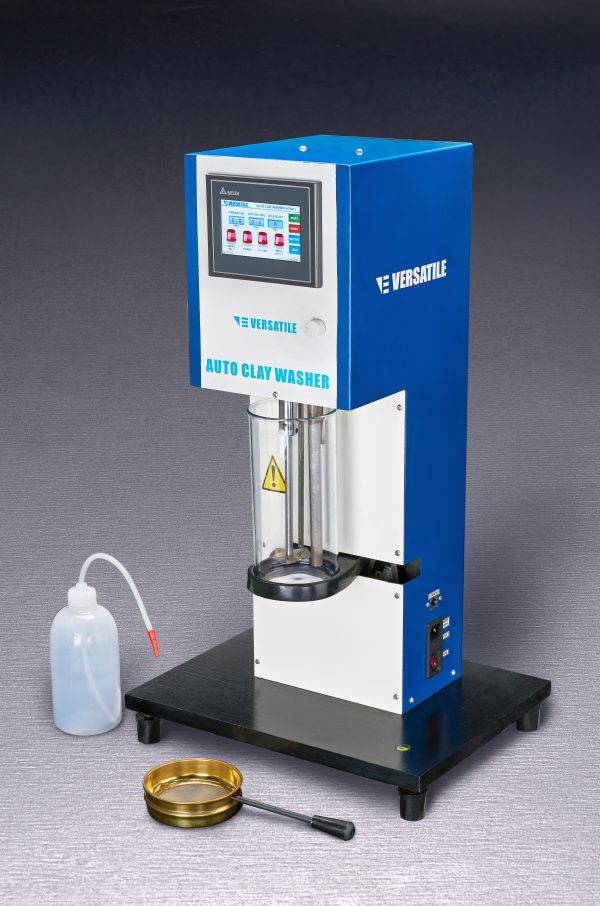

The Auto Clay Washer is an advanced testing system designed to efficiently separate clay from sand samples. The equipment features a Motorized Stirring mechanism, a precise water leveling system, and an automatic syphoning mechanism built to cleanly syphon out muddy water.
Equipped with adjustable timers and an adjustable cycle count facility, the entire process is managed by a high-end electronic control system. Users can effortlessly monitor system status and configurations directly via the integrated Touch-screen interface.
General Usage
This equipment is used to thoroughly agitate sand samples within an alkaline solution. This process forces the clay into a state of suspension, allowing it to be seamlessly separated from the core sand sample.
Inclusions (Scope of Supply)
Auto Clay washer
Glass Jar & Wash bottle
Assy Sieve (53 Mic.)
Working condition certificate
Instruction manual
Product Features
Technical Specifications
Electrical Supply: 230V 50Hz A.C. (Default) / 110V 60Hz A.C. (Optional) Single Phase, Stabilized with Over/Under Voltage cut-off
Electrical Plug: M type : 6 Amp Plug
Typical Maximum Current: 1.2 A at 230V
Tap Water Supply: Clean water @ 4 PSI
Compressed Air Supply: Not Required
Operating Temperature: 0–50°C
Testing Standards: BIS Standard (Default), AFS (Optional)
Calibration Frequency: 4500 nos. of Testing Cycles or Once in Year
Traceable to: Manufacturers Standards
