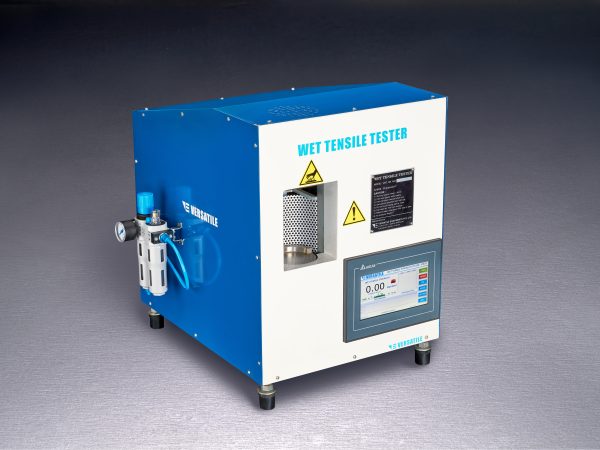

The Wet Tensile Tester is a high-performance evaluation machine equipped with advanced loading, heating, and sensing mechanisms. Controlled by a high-end electronic control system, it lets users monitor precise metrics on a Touch-screen HMI that actively displays real-time graphs, run-charts, and analytical/diagnostic features. Ready for modern industrial environments, the equipment is 4.0 ready with built-in capabilities to communicate over networks.
Inclusions (Scope of Supply)
-
Wet Tensile Tester
-
Special tube, Special tube cap & Special pedestal cup
-
Calibration dead weights set
-
Hand gloves set asbestos
-
Calibration certificate
-
Instruction manual
Product Features
Technical Specifications
-
Electrical Supply: 230V 50Hz A.C. (Default) / 110V 60Hz A.C. (Optional) Single Phase, Stabilized with Over/Under Voltage cut-off.
-
Electrical Plug: M type : 15 Amp Plug
-
Typical Maximum Current: 2.5 A at 230V
-
Compressed Air Supply: $5\text{ Kg/cm}^2$ Compressed Dry Air
-
Communication Ports: Ethernet, CloudSync using V-Sync
-
Measuring Range: $60\text{ Grams/cm}^2$
-
Least Count: $0.05\text{ Gm/cm}^2$
-
Operating Temperature: 0–50°C
-
Testing Standards: BIS Standard (Default), AFS (Optional)
-
Calibration Frequency: 22,500 nos. of Testing Cycles or Once in Year
-
Traceable to: NABL Standards
