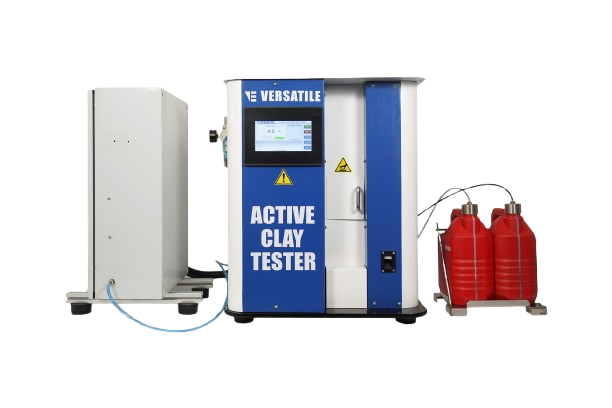

The Auto Active Clay Tester is a comprehensive, standalone unit designed for separating clay from sand particles and automatically calculating the active clay percentage. It features highly sophisticated, electronically controlled systems for heating, cooling, stirring, and sensing. The unit is equipped with a user-friendly touch screen display and has built-in network readiness, allowing it to seamlessly communicate over Ethernet and utilize Cloud Sync via a V-Sync device.
Inclusions (Scope of Supply)
Auto Active Clay Tester
MB Solution – 1 Ltr
Filter Paper – 1 Roll/ Stack
Cleaning Brush
Calibration Certificate
Instruction Manual
Product Features
Technical Specifications
Electrical Supply Requirements: 230v 50Hz A.C. (Default) / 110v 60 Hz A.C. (Optional); Single Phase, Stabilized with Over/Under Voltage cut-off
Electrical Plug Type: M type : 15 Amp Plug
Typical Maximum Current: 4.6 A at 230V
Communication: Ethernet, Cloud Sync using V-Sync
Measuring Range: 0-100%
Least Count: Corresponding to 1 ml Methylene Blue Standard Solution
Specimen Requirements: Representative sand sample
Operating Temperature: 0-50°C
Testing Standards: AFS
Calibration Frequency: 2450 nos. of Testing Cycles or Once in 6 months
Traceable to: Manufacture Standards
