Product Features：
- Fixed moving bridge structure is adopted to ensure high accuracy and stability of measurement. Four-axis CNC fully auto loop control, auto measurement.
- Granite base and pillar are adopted, with stable performance and not easy to deform.
- Imported open type linear scale, resolution is 0.1um, high accuracy, great stability.
- Independent research and development of measurement software, with fast focusing, automatic edge finding, SPC data processing analysis and automatic measurement functions.
- Independent research and development of motion control system, integrated in the instrument, with higher stability.
- Joystick / mouse operation, easy to use.
- The laser indicator indicates the measuring position, which is convenient for quick positioning.
- Equipped with auto zoom lens, precise auto zoom, only one pixel calibration is needed, which can realize efficient measurement under multi -magnification.
- P-grade linear guide, precision grinding grade ball screw, AC servo motor, to ensure the accuracy and stability of the system position.
- Imported high definition color industry camera, ensure clear observation and stable measurement requirement.
- 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time.
- Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently.
- With proprietary fully auto measuring software , powerful function, simple operation.
- Optional touch probe and laser probe, it can also be customized according to customer request.
Product Application：

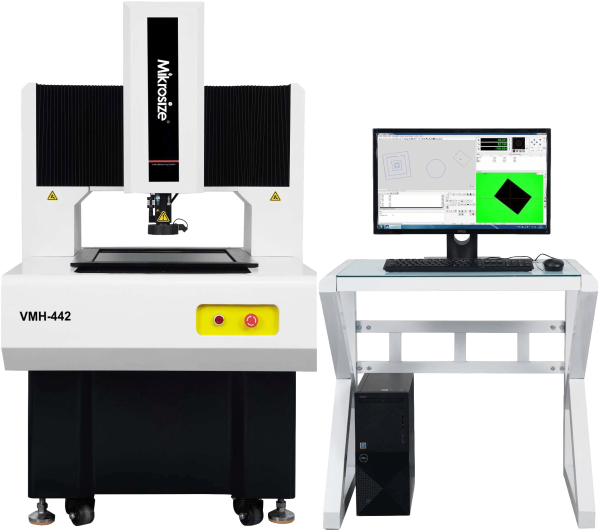

- VMH Series is a Fixed Gantry Video Measuring Machine, it is designed for high accuracy and large dimension measurement. With high precision measurement accuracy and stability. It is widely used in , medical devices, LCD, aerospace, mechanical manufacturing, electronics, automobile, hardware, plastic, mold and other industries.
