Product Features:

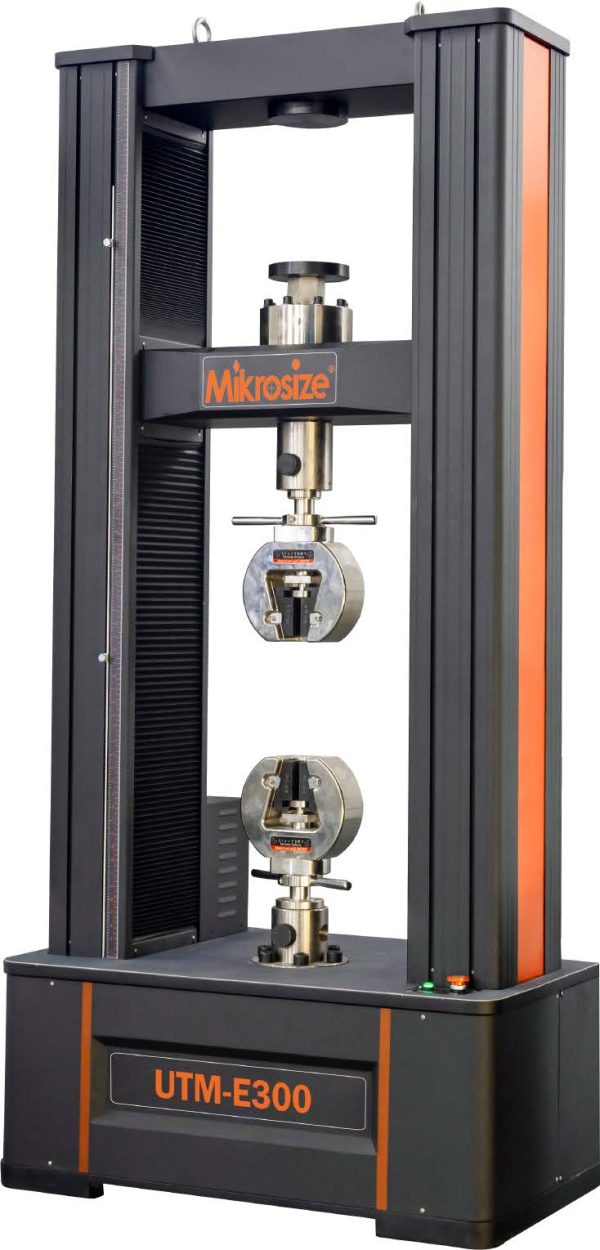

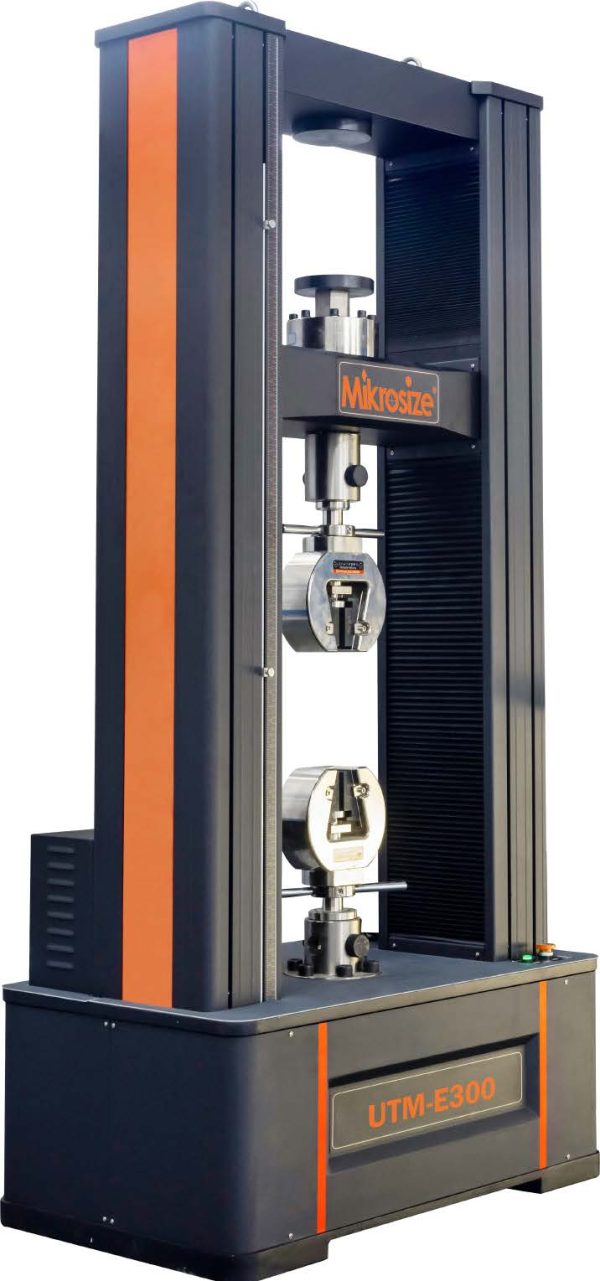

- The main machine adopts a rigid floor-standing gantry frame structure, which is composed of an upper crossbeam, a movable crossbeam and a workbench connected by columns and ball screws, ensuring stability and reliability.
- The movable crossbeam is processed from a single casting, which ensures it can bear sufficient force without deformation.

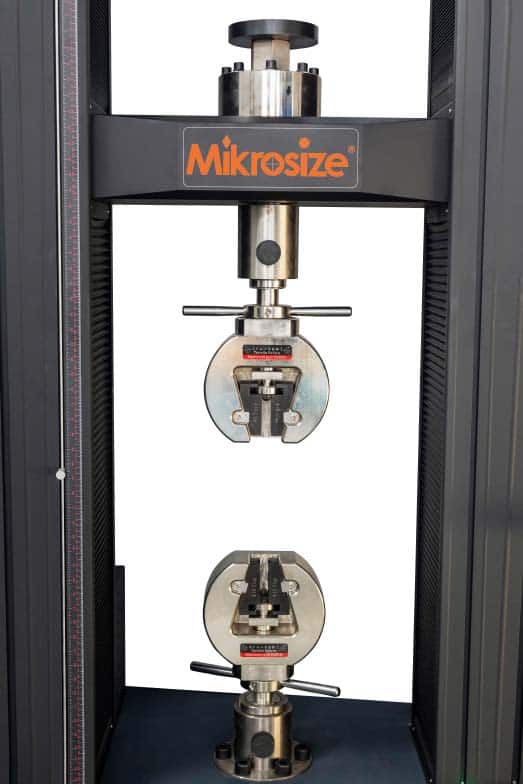

- It can conduct both tensile and compression tests simultaneously, with the upper part serving as the tensile test space and the lower part as the compression test space.

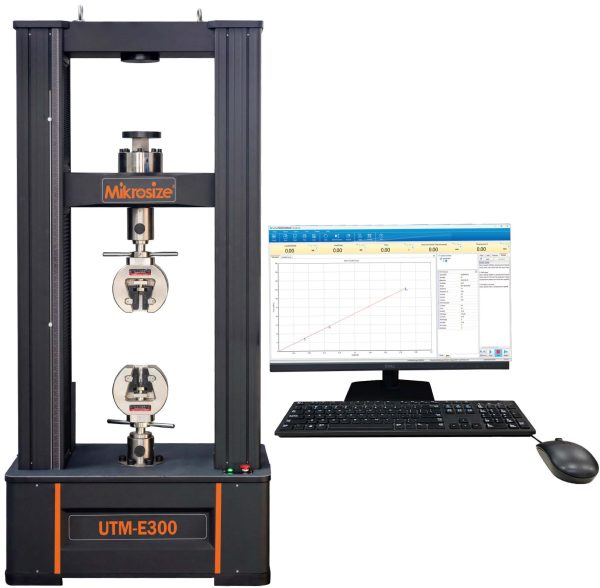

- Driven by a servo motor, it is equipped with a high-precision sensor, a dedicated independent controller and measurement and control software, enabling precise control of the equipment.
- Equipped with a magnetic handheld control box, facilitating users to operate the equipment from a distance.
- The dedicated software has multiple functions to meet the needs of different users. It also features a modular and open design. In addition to providing common standards such as GB, ASTM, DIN, ISO and JIS, users can design calculation formulas according to their own requirements.
- The software can generate real-time curves in multiple modes, including force-time, stress-time, strain-time, displacement-time, etc.
- The software can automatically calculate parameters such as maximum force, average force, maximum deformation, tensile strength and yield strength.
- It provides customizable test report templates for users, supporting report export in multiple formats: Word, PDF and Excel.
- The software is compatible with multiple Windows operating systems: Windows 7, Windows 10 and Windows 11.
- Maximum test force: 100kN.
- Test speed range: 0.001 – 500mm/min.
- Multiple units are available.
- Force units：KN、N、kgf、lbf.
- Displacement units：mm、cm、dm、m、in、ft、mil.
- It can automatically return to the initial position after the test is completed.
- Equipped with multiple protection devices, including mechanical travel switches, emergency stop switches and overload protection.
- Standard tensile and compression fixtures are provided, and custom fixtures can be made according to user needs.
- It complies with the following execution standards: GB/T 2611, GB/T 16491, GB/T 16825, GB/T 228, ISO 527, ASTM D3574, DIN 53357, JIS K6854, etc.
Product Applications:
- Metal materials field.
- Raw material quality control.
- Processing technology verification.
- Finished product performance testing.
- Non-metallic materials field.
- Testing of plastic and rubber products.
- Testing of textiles and leather products.
- Testing of paper and packaging materials.
- Construction and building materials field.
- Building materials testing.
- Scientific research and education field.
- Scientific research experiments.
- Teaching demonstrations.
