Product Features:

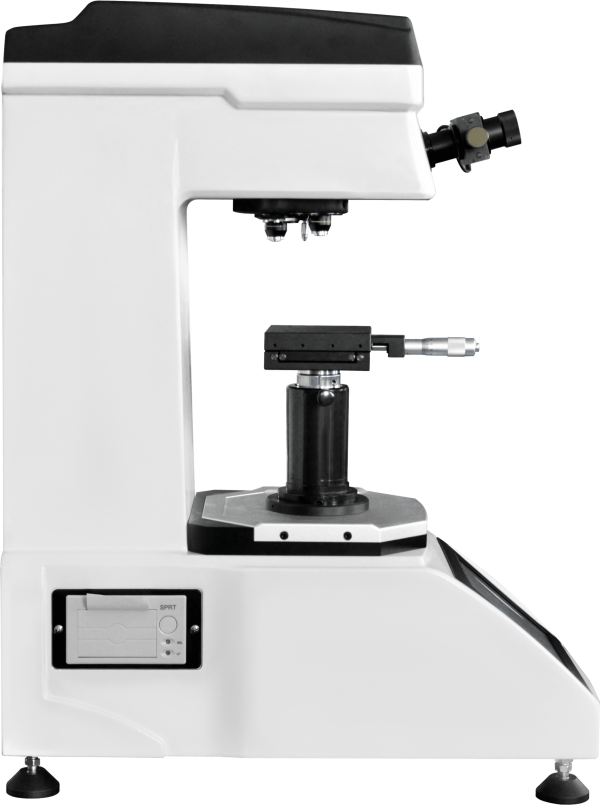

- MVicky-1000 Digital Micro Vickers Hardness Tester adopts brand-new aluminum alloy casting technology.
- High-quality components are used in mechanics, electrical system and light source, ensuring higher accuracy and better stability of the machine.
- The unique automatic weight switching mechanism makes operation more convenient.

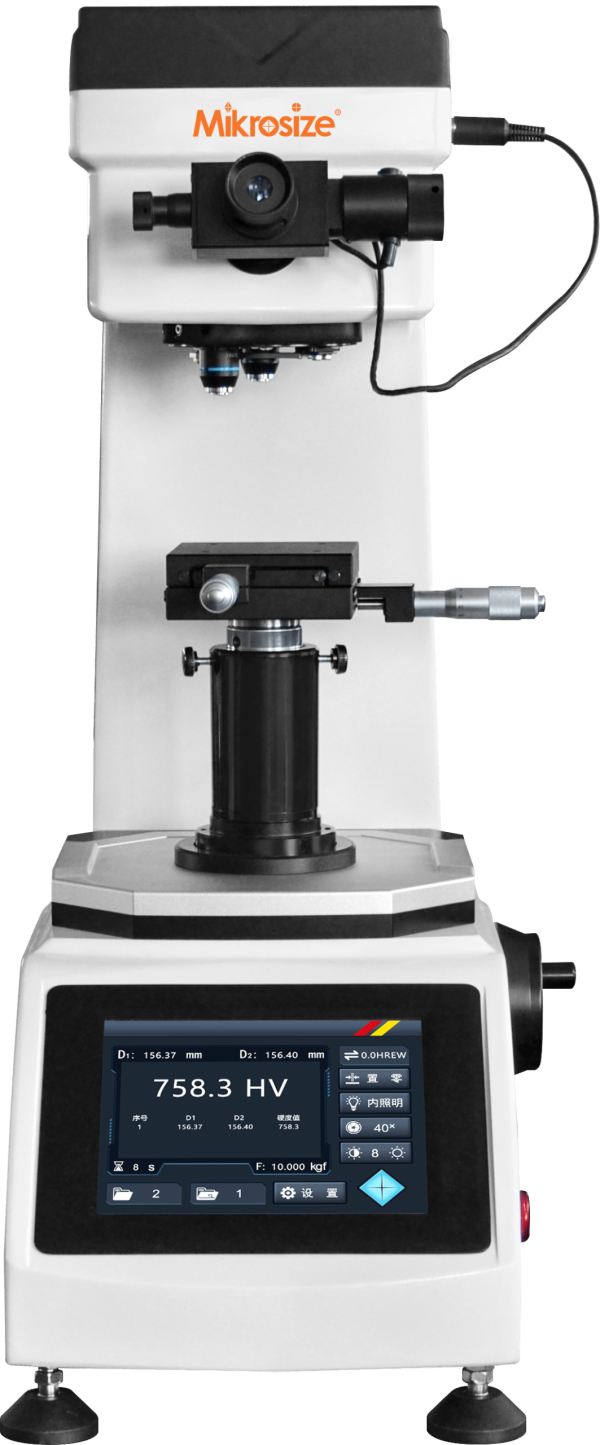

- Equipped with a digital micrometer eyepiece, it intuitively displays test force, indentation length, dwell time, conversion scales, time and other parameters on the touch screen.
- During operation, the hardness value can be automatically calculated and displayed on the screen by measuring the indentation and pressing the eyepiece button.
- This machine can be equipped with a Knoop indenter, customized with 2 kg test force, and optional with CCD image automatic measuring system.
- Brand-new aluminum alloy casting technology, with 99% rigidity of the main body, sturdy and aesthetic housing.
- Adopts special material lifting lead screw, with hardness reaching 35HRC~40HRC after heat treatment, wear-resistant; Worm gear drive ensures smoother lifting movement.
- Most internal parts are made of stainless steel and aluminum alloy, more stable.
- Weight loading system with automatic weight switching according to test force selection, no manual knob operation required; test force loading, dwell and unloading are completed automatically.
- Equipped with 3 objectives for measurement, automatic identification and switching between objectives and indenter.
- LED cold light source for longer service life.
- Vickers and Knoop test modes are available, supporting real-time conversion of various hardness scales.
- Allows upper and lower limit setting with out-of-tolerance indication.
- Real-time storage of hardness test results, automatic calculation of maximum, minimum, average value and standard deviation, with multiple folder options, optional deletion and print output.
- Built-in thermal printer with fast printing speed; equipped with USB port for direct data export to U disk and RS232 port for computer connection output.
Product Application:
- Hardness testing of ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals; glass, ceramics, agate, gemstones, thin plastics, etc.; Testing for depth and gradient of carburized layers and quenched hardened layers.
