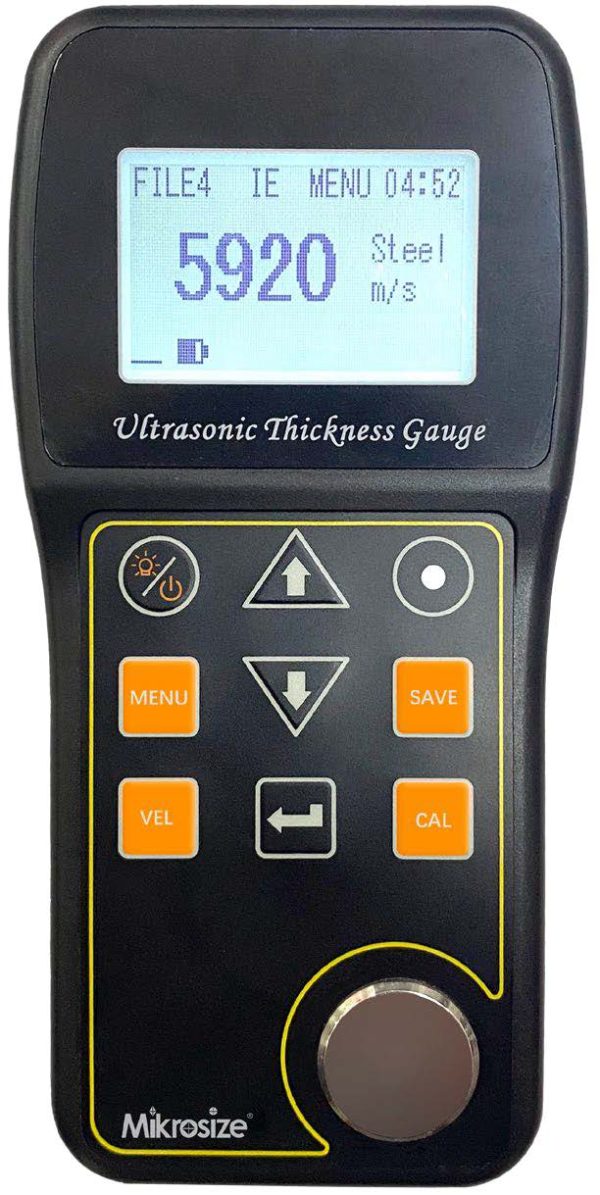

iThick-200 Ultrasonic Thickness Gauge

ithick-200-ultrasonic-thickness-gauge-1

Key Product Features

Advanced Ultrasonic Measurement Modes

The device utilizes both Pulse-Echo (PE) and Interface Echo-to-Backwall Echo Differential (IE) ultrasonic principles. Users can select from three distinct measurement modes—PE, IE, and TEST—to achieve highly accurate thickness gauging directly through protective coatings.

High-Precision Resolution

The display offers a sharp resolution of 0.01 mm. With a tight measurement error limit of just $\pm0.4\%H$ (where $H$ represents the workpiece thickness), this tool delivers the high precision required for demanding industrial applications.

Smart Calibration Systems

Eliminate guesswork with integrated zero calibration and velocity calibration. The system automatically corrects systematic errors. It also calculates exact material velocity when paired with a reference block of known thickness.

Robust Data Logging & High-Contrast Display

• Data Storage: The internal memory saves up to 500 total data groups. Each entry records the thickness value, sound velocity, and an exact timestamp.

• Premium LCD Screen: A high-contrast LCD with an LED backlight ensures clear visibility under any lighting conditions. The screen displays thickness, coupling status, battery level, calibration state, velocity, and time at a glance.

Optimized Power Management

Two standard AA alkaline batteries power the device for up to 5 hours of continuous operation (with the backlight off). A real-time battery indicator keeps you informed of power levels. To conserve energy, the adjustable auto-power-off feature triggers after 2 minutes of inactivity, supplemented by a manual power switch.

Fully Configurable Settings

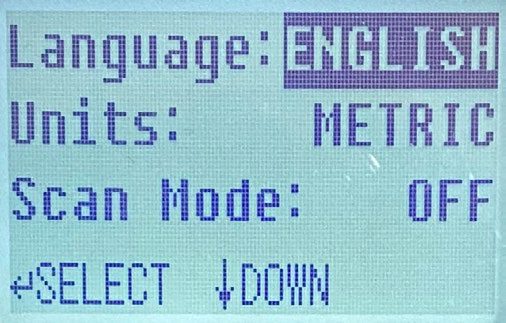

Tailor the device to your workflow. The customizable firmware allows you to adjust the unit system (metric/imperial), toggle scan mode, set flashing alarms, configure probe parameters, adjust screen contrast, and export data directly to a PC.

Industrial Product Applications

Precious Metal Purity Verification

Protect your investments by detecting internal adulteration. The device employs non-destructive ultrasonic testing to scan inside gold bars, silver bars, and coins to accurately verify their fineness and structural purity.

Multi-Material Thickness Measurement

Accurately measure plates made from steel, non-ferrous metals, and other dense materials. The device easily adapts to different operational environments through four specialized modes:
