High-Fidelity Infinite Optical System
Our infinite optical system works in tandem with plan semi-apochromatic objectives and large-field, high-eyepoint eyepieces. This premium pairing accurately restores the true details of complex metallographic structures to meet the most demanding high-precision testing requirements.
Intelligent Illumination Memory
The microscope automatically matches the optimal light intensity every time you switch objective magnifications. This smart system eliminates the need for repeated manual lighting adjustments, reduces operational steps, prevents human errors, and greatly improves testing fluency.
True-to-Life Studio Lighting
The device features a 10W, 4500K wide-spectrum LED with a color rendering index (CRI) of 95 or greater. Complete with preset centering, stepless brightness adjustments, and a variable aperture, it provides true-to-life coloration across your entire sample.
Modular Contrast Adjustments
Expand your analytical capabilities with a rich variety of optional accessories. The modular chassis easily scales to support brightfield/darkfield illumination, polarizing observation, and differential interference contrast (DIC) observation.
High-Precision Mechanical Design
-

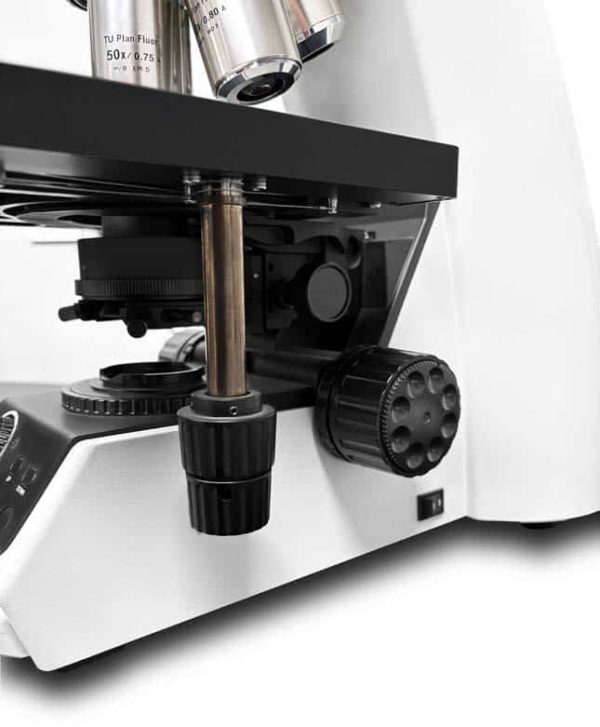

Coaxial Focusing: The coarse and fine coaxial focusing system features an ultra-fine 1 $\mu\text{m}$ adjustment scale value for razor-sharp tracking.
-

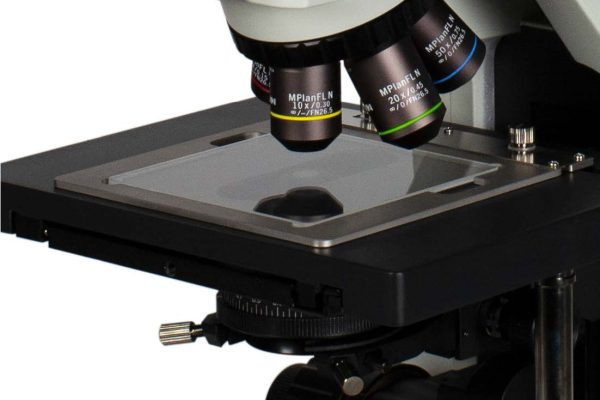

Large-Travel Stage: The $75 \times 50\text{ mm}$ large-travel stage pairs with a five-hole encoded nosepiece to realize precise positioning and smooth operation during long-term testing cycles.
Industrial Metallurgical Applications
Metal Grading & Quality Assessment
Grade the grain sizes and internal inclusions of steel, non-ferrous metals, and alloys. These metrics allow labs to evaluate the overall effectiveness of heat treatment processes and verify raw material properties.
Weldment & Casting Defect Tracing
Locate underlying material defects such as micro-cracks, blowholes, and porosity in raw castings or active weldments. Catching these flaws early allows engineers to trace the root causes of component failure and ensure product reliability.
Heat Treatment Process Optimization
Observe subtle microstructural changes after specialized processes like quenching, tempering, and annealing. Tracking these shifts helps manufacturers optimize their factory process parameters to ensure stability during mass production.
Weld Zone Structural Inspection
Clearly view the distinct microstructures of weld fusion zones and surrounding heat-affected zones (HAZ). Technicians can easily detect critical weld defects like incomplete penetration and hidden slag inclusions to meet strict structural acceptance criteria.
Coating & Powder Metallurgy Analysis
Analyze the internal porosity and sintered structure of advanced powder metallurgy parts. The microscope also delivers the high contrast required to measure the exact thickness and bonding interface quality of industrial coatings and platings.
Academic Materials Science Training
Equip university engineering and materials science departments with a rugged, high-precision laboratory tool. The simple controls make it ideal for teaching metallographic structure observation and material performance analysis.
